Enterprise Insights settings

The Enterprise Insights (EI) settings page lets you manage your connection between EI and your corporate network through firewall rules and user accounts. If you’re new to Enterprise Insights, review the following resources first:

On this page:

Access EI settings

Access Enterprise Insights settings by navigating to Admin > Setup > Enterprise Insights. Super admin roles can manage settings and use the setup wizard once the EI offering has been purchased and provisioned.

The page displays a table with three tabs: Firewall rules, Users, and Audit log.

Manage firewall rules

Firewall rules specify which IP addresses and ranges on your corporate network can access your Enterprise Insights instance. By default, all IP addresses are blocked from EI. If no rules are created, users on your network will not be able to connect to EI. You can create new rules and delete rules that are no longer needed from this tab.


Note: If you are using the VPN for VPC environments connection or data file retrieval option, firewall rules are not required.

Create a new rule

Note: Only known IP addresses on your network should be included in firewall rules. To confirm an IP address belongs to your corporate network, look it up at the American Registry for Internet Numbers.

  1. Select the Add firewall rule button.
  2. In the settings panel that displays, enter a unique Rule name, a Start IP address, and an End IP address.
    1. To create a rule for a single IP address, enter the same IP value in the start and end fields.
    2. To create a rule for an IP address range, enter the beginning of the range in the start field and the end of the range in the end field.
  3. Select the Save button. You’ll see the rule listed in the table of firewall rules.

Delete a rule

Select the Delete link to the right of the rule’s row.

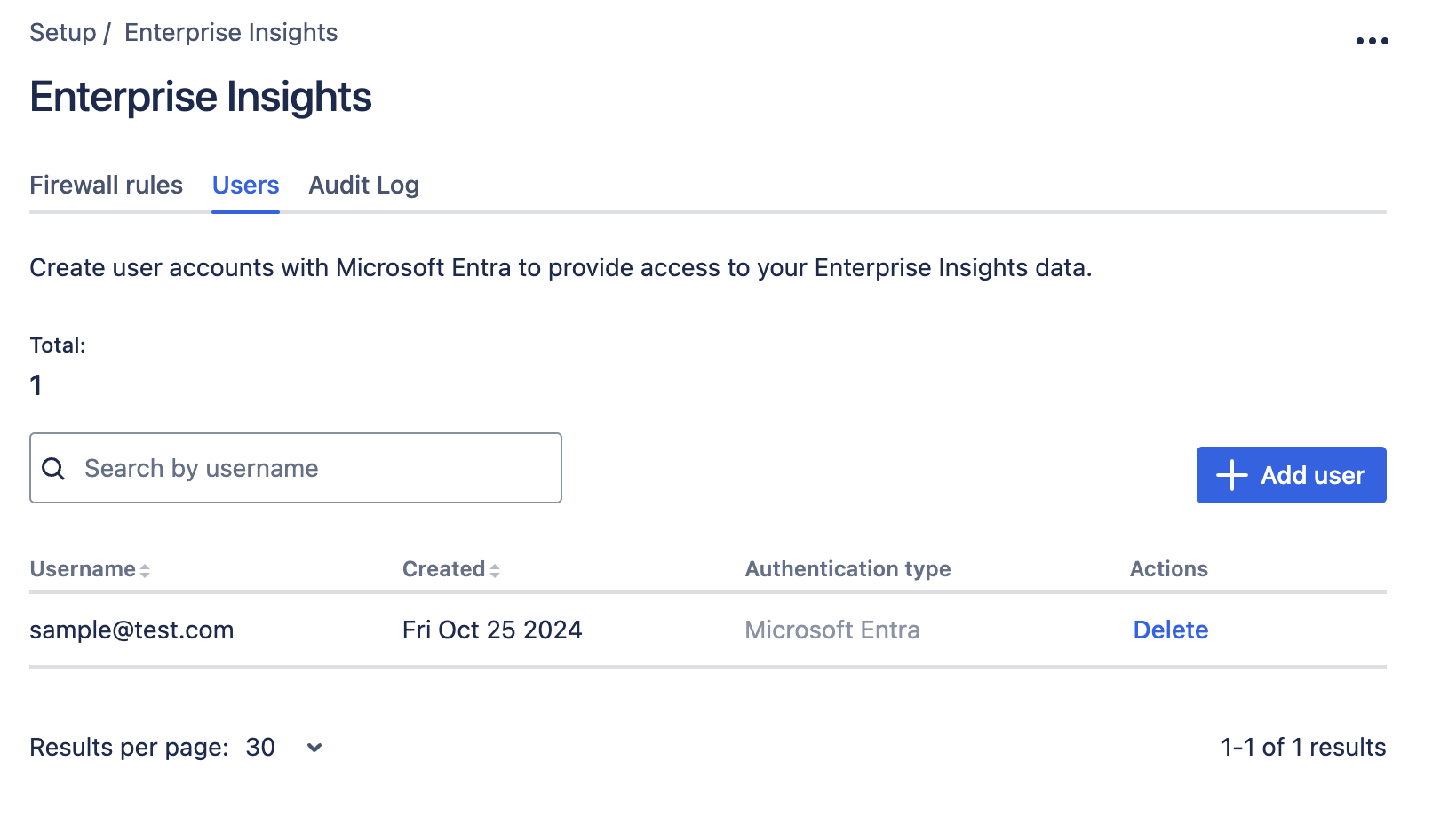

Manage user accounts

User accounts specify which users can authenticate with your Enterprise Insights instance. User accounts are not directly associated with Jira Align users. User accounts utilize Microsoft Entra authentication, which enforces your SSO and multi-factor authentication when connecting to EI.


Create a Microsoft Entra user account

  1. Select the Add user button.
  2. In the Email field, enter an email address for the user you want to invite.
  3. Select the Save button. You’ll see the user listed in the table of user accounts.
  4. The user will receive an email invite with a link to connect to your Azure presence. Once the link is selected, the user account will be authorized to access your EI instance.

Delete a user account

Select the Delete link to the right of the user’s row.

Note: For Microsoft Entra user accounts, it may take several hours for Microsoft Entra to remove the user from Azure.

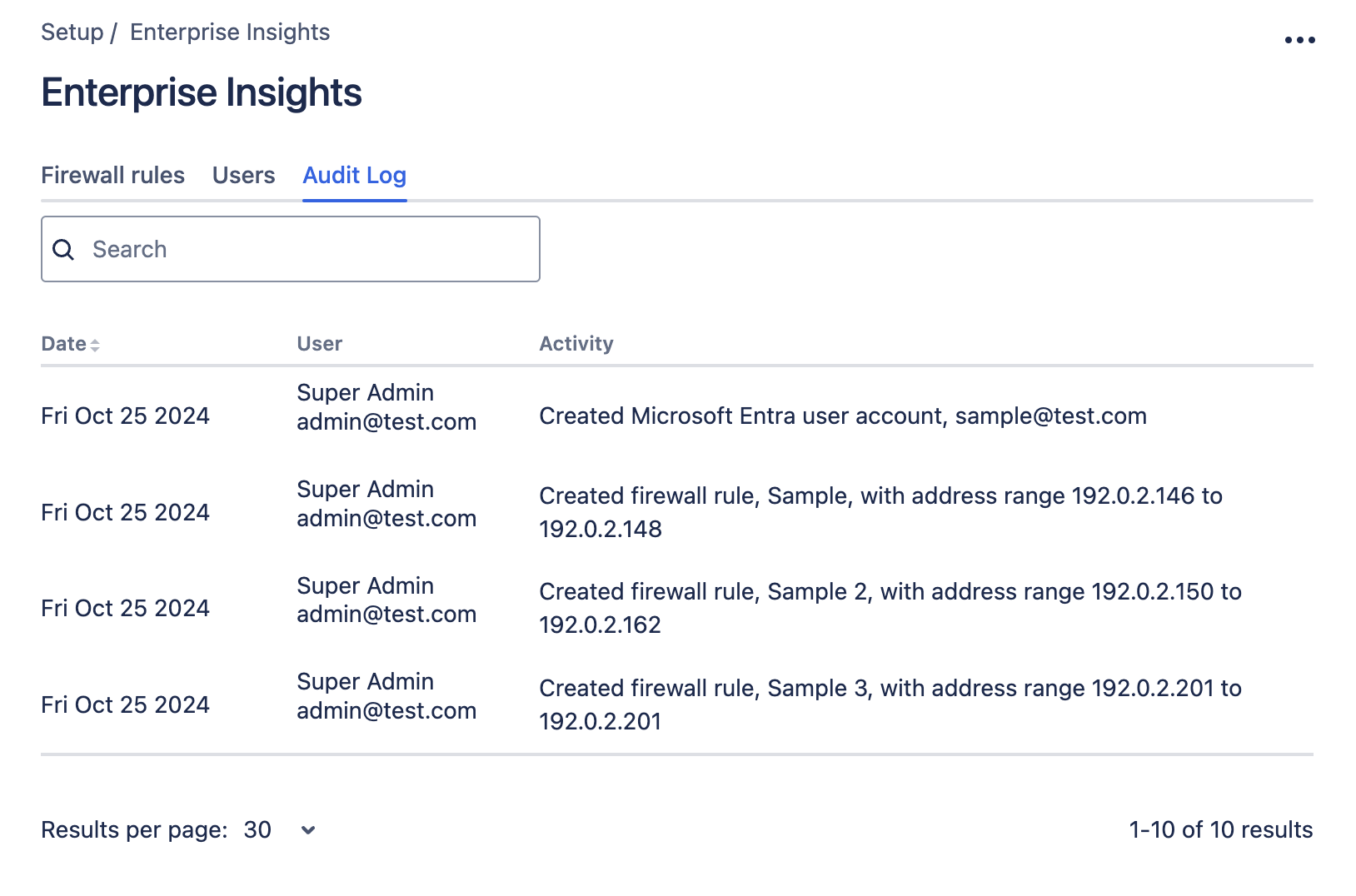

Review the audit log

The Audit log tab displays the following actions performed by admins in your environment:

  • Creation and deletion of firewall rules
  • Creation and deletion of user accounts
